Electric kit for 7-piece candle arch with grommet and connecting sleeve by SEIFFEN.COM
Prices excl. VAT, excise duties, customs, excl. shipping
Fastest delivery time: 3 - 4 days at your place in the US or Canada

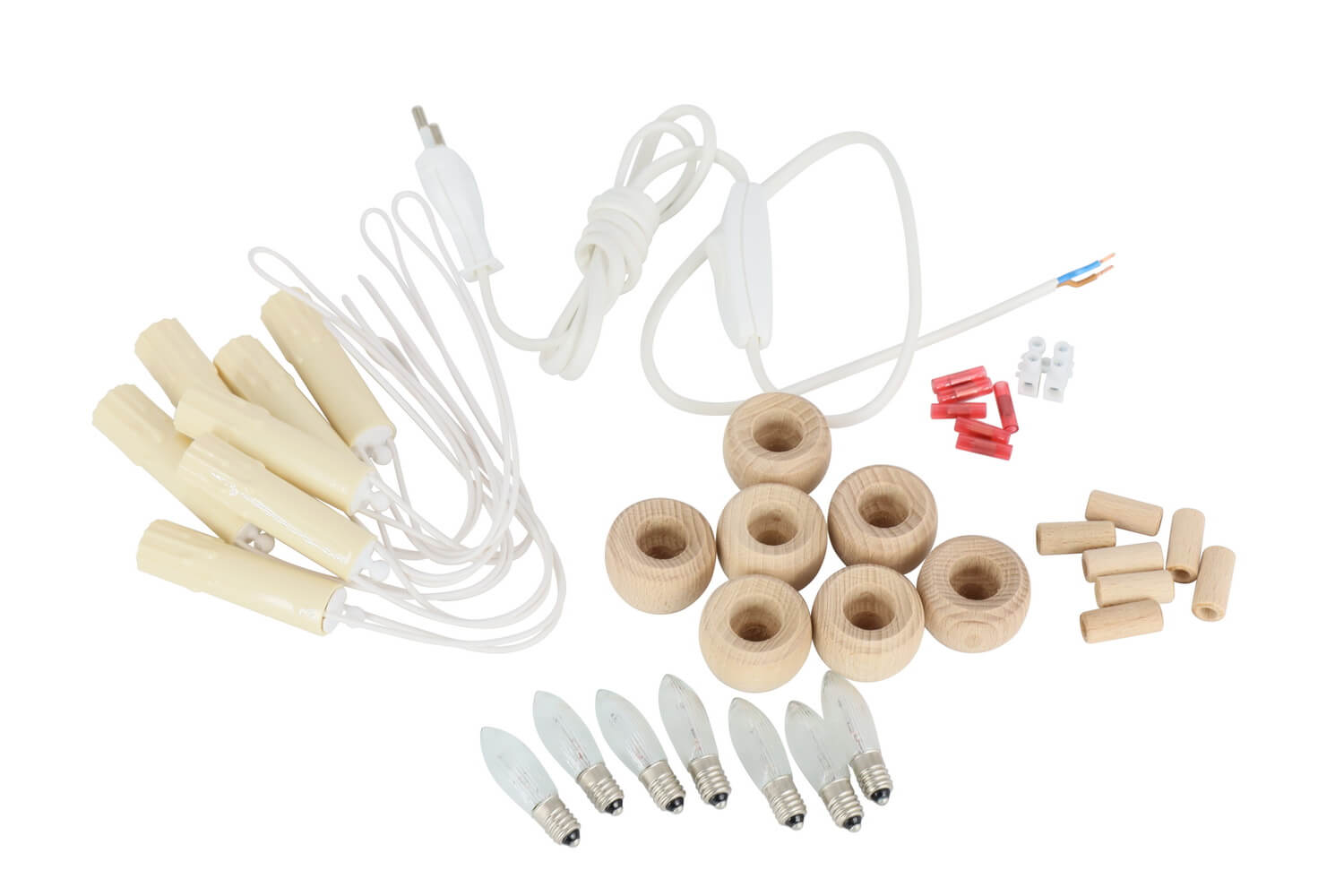

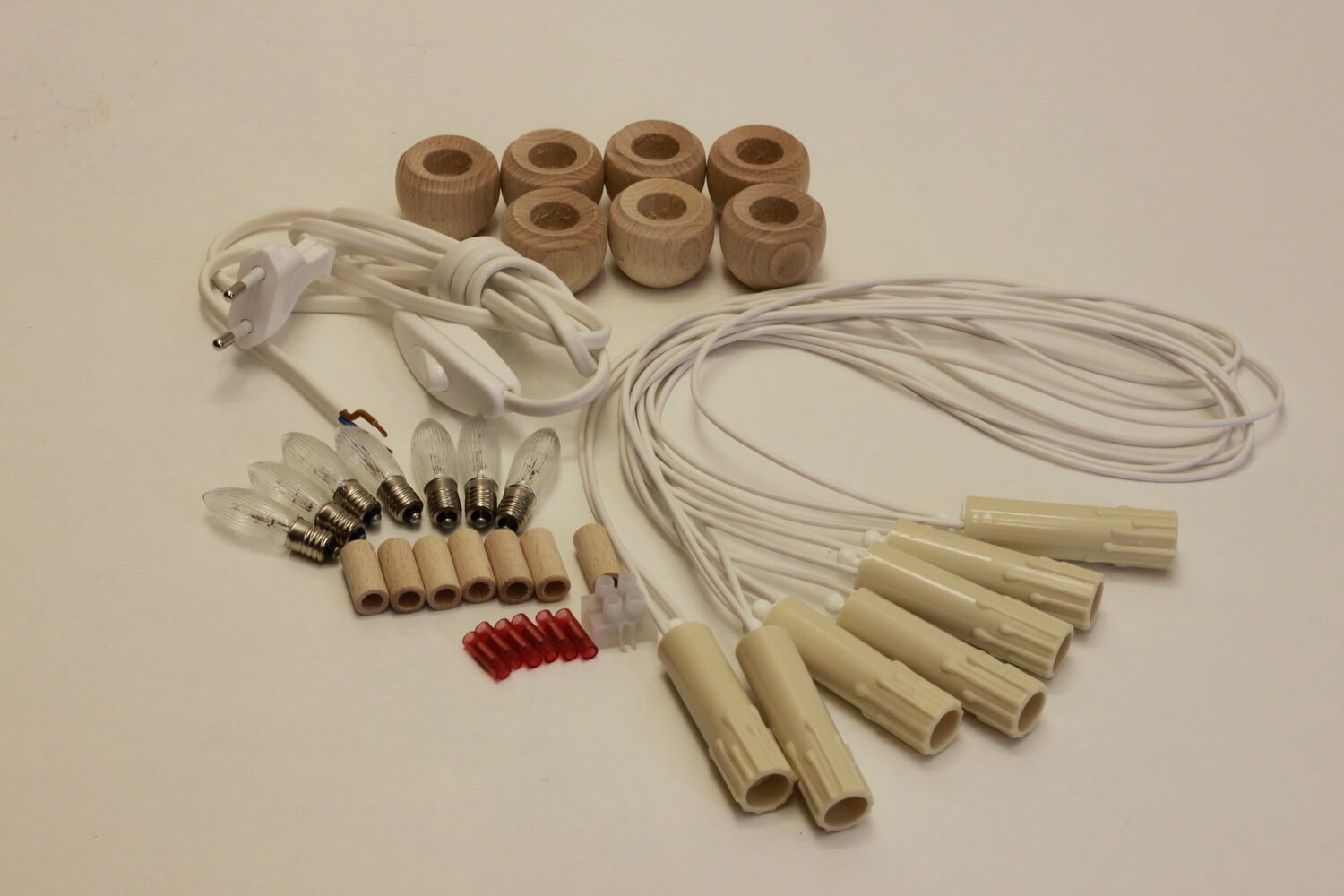

Kit for 7 candle arch, 7 corrugated candles 34 Volt, 1 connecting cable with switch, 1 luster terminal, 7 candle sleeves completely assembled with 26 cm long cables, 6 crimp connectors, 7 wooden grommets with respective connecting sleeve
Instructions for the component set of a candle arch in series connection
- 7 candles with 34 V
The main part of the component set are the candle holders, which consist of socket, sleeve, grommet (made of wood), 2-fold insulated wires with approx. 26 cm long contacts and the candle.
This candle holder is then attached to the designated points of the existing arch. The two insulated wires (outer-diameter strand 2.5 mm) are cut in the middle and then cut to the appropriate length. The ends must then be stripped and connected in series with the wires of the other candle holders. This is done either using a parallel connector (included in the component set) or by soldering.
The last two free wires are connected using a luster terminal, which is hidden in the base of the candle arch. One of the two wires must be connected to the enclosed supply cable of approx. 60cm from one side of the candle arch to the chandelier terminal. The connecting cable with switch is also connected to the chandelier terminal. The candles are screwed in and the candle arch is already electrically installed.
Please note, that when soldering the wires, the soldering point must be stripped with heat-shrink tubing (not included in the component set).
In addition, when using LED candles, please note, that only LED candles must be used, as LED candles are not compatible with other candles.
Safety note:
Electrical installations should only be carried out by people with the necessary electrical engineering expertise. SEIFFEN.COM by Nestler therefore accepts no liability for the installation and use of the component set.
