Electric kit for 10 candle arch with grommet and connecting sleeve by SEIFFEN.COM
Prices excl. VAT, excise duties, customs, excl. shipping
Fastest delivery time: 3 - 4 days at your place in the US or Canada

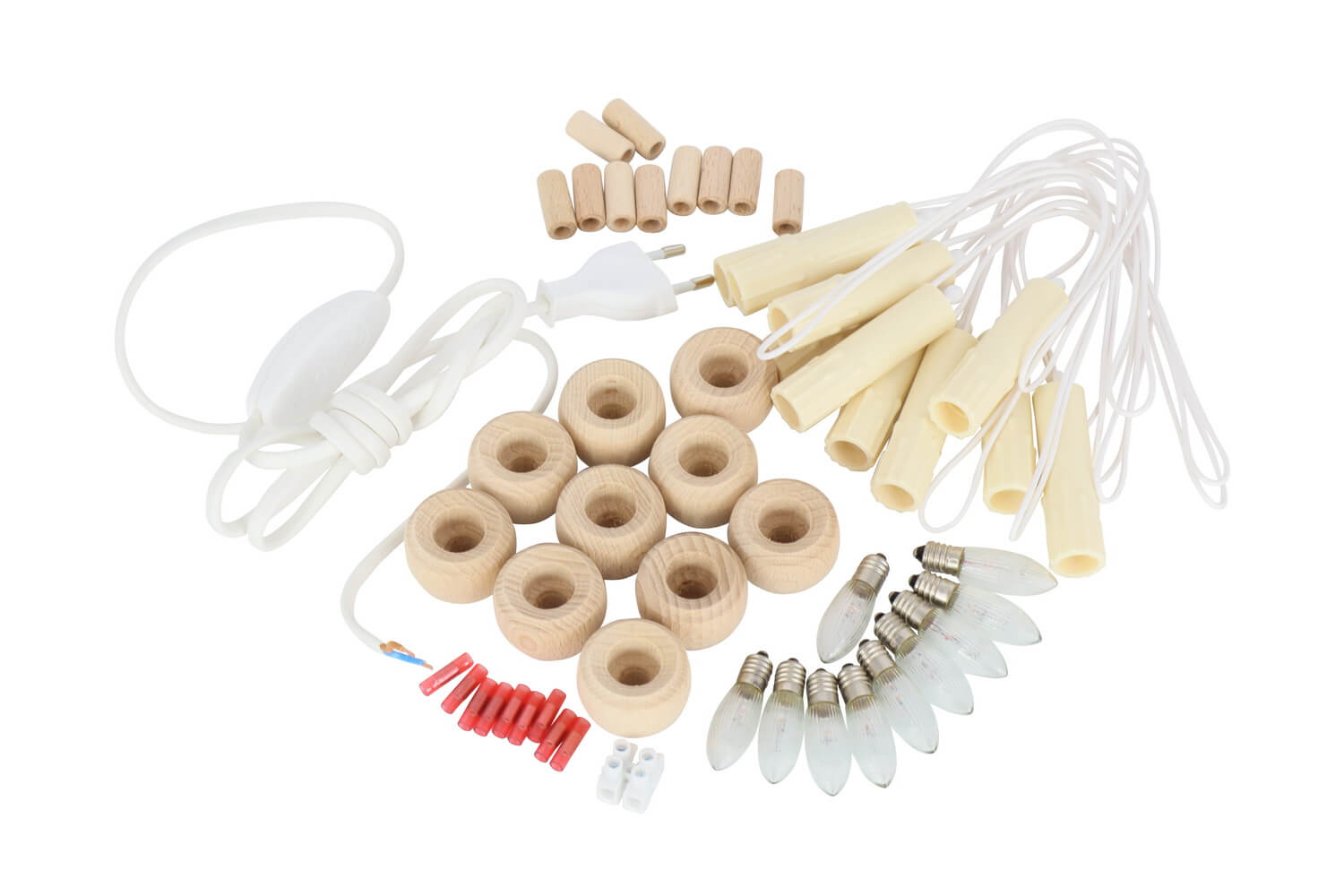

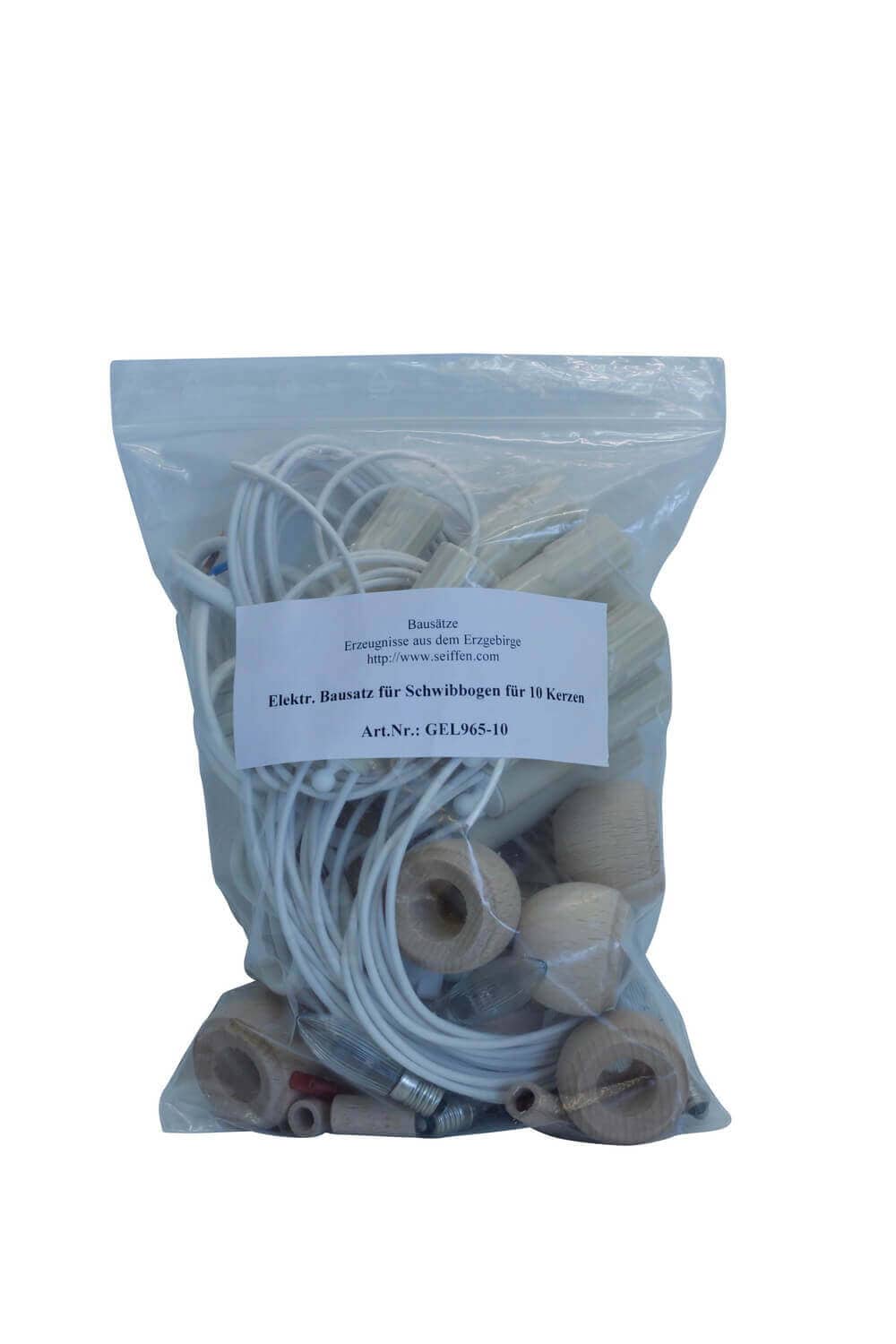

Kit for 10 candle arch, 10 corrugated candles 23 volt, 1 connecting lead with switch, 1 luster terminal, 10 candle sleeves completely assembled with 26 cm long leads, 9 crimp connectors, 10 wooden grommets with respective connecting sleeve
Instructions for the component set of a candle arch in series connection
- 10 candles with 23 V
The main part of the component set are the candle holders, which consist of a socket, sleeve, grommet (made of wood), double-insulated wires with approx. 26 cm long contacts and the candle.
This candle holder is then attached to the designated points on the existing arch. The two insulated wires (outer diameter stranded wire 2.5 mm) are cut in the middle and then cut to the appropriate length. The ends must then be stripped and connected in series with the wires of the other candle holders. This is done either using parallel connectors (included in the component set) or by soldering.
The last two free wires are connected using a luster terminal, which is hidden in the base of the candle arch. One of the two wires must be extended from one side of the candle arch to the luster terminal with a supply line of approx. 60 cm. The connecting cable with switch is also connected to the chandelier terminal. The candles are screwed in and the candle arch is now electrically installed.
Please note that when soldering the wires, the solder joint must be stripped with heat-shrink tubing (not included in the component set).
When using LED candles, it is also important to ensure that only LED candles are used, as LED candles are not compatible with other candles.
Safety instructions:
Electrical installations should only be carried out by people with the necessary electrical engineering expertise. SEIFFEN.COM by Nestler therefore accepts no liability for the installation and use of the component set.
